★ Innovate patent design with dual shaft driving for rotor and separator.
★ All mill chamber made by ceramic parts with high hardness and high thermal conductivity.
★ Easy to edit, save and read the recipes and process parameters with a graphical HMI.

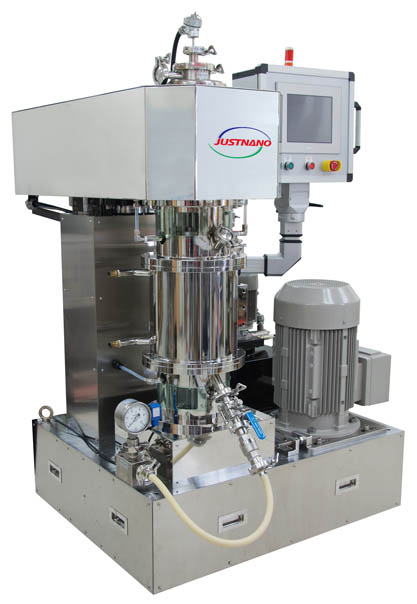

★ The bead mill is ergonomically designed. Safe and convenient operation. Easy to clean and maintain. ★ The range of size for grinding medium is between 7 to 1000μm.
★ The range of viscosity for the nanodispersions is up to 1000 cps.
Specifications
Type
JBM-D500
JBM-D1000
JBM-D2000
Motor power (Kw)
10
15
20
Revolution(rpm)
0~1500
Volume(L) ＊
5
10
20
Material of ceramic parts
SSiC
Grinding medium size (μm)
7~1000
＊Effective volume of grinding chamber.
＊This specification may be changed without notice.
